How to Use Conditions

The Condition step in your workflow acts as a decision point. Think of it as an if-then-else statement for your automation.

It checks if certain rules are true or false and directs the workflow based on the outcome. This allows you to create dynamic and intelligent automations that respond differently to various situations.

For example, you can use a Condition step to check if an order's status is Awaiting Payment before sending a payment reminder email.

Configure a Condition

The Condition step has three main parts you can configure, Condition Logic, Context Path, and If False, Go To.

Condition Logic

This is where you define the rule that the workflow will check. The rule must be written in JSON format. You will use operators to compare a field's value against the criteria you set.

For example, the condition {"status":{"$nin":["cancelled","no-show","closed"]}} checks if the status of an order is not cancelled, no-show, or closed.

To learn more about operators, check the Workflow Filters page.

Context Path

The Context Path is an optional field that tells the Condition step where to find the data it needs to check. This is useful when the information is not part of the original trigger but is instead the result of a previous step in the workflow, like a CRM Action.

  • Leave it blank to check data from the workflow's original trigger payload.

  • Provide a path to check the result of a previous step. The path is typically history.<step_number>.result, where <step_number> is the number of the step whose output you want to inspect.

If False, Go To

This field determines what happens if the condition is false. You can:

  • Jump to another step: You can enter the number of another step in the workflow. The workflow will then jump to that step and continue. Each step's number is visible in its top right corner.

  • End the workflow: If you leave this field blank, the workflow will simply stop if the condition is false. The placeholder text Exit shows this is the default action.

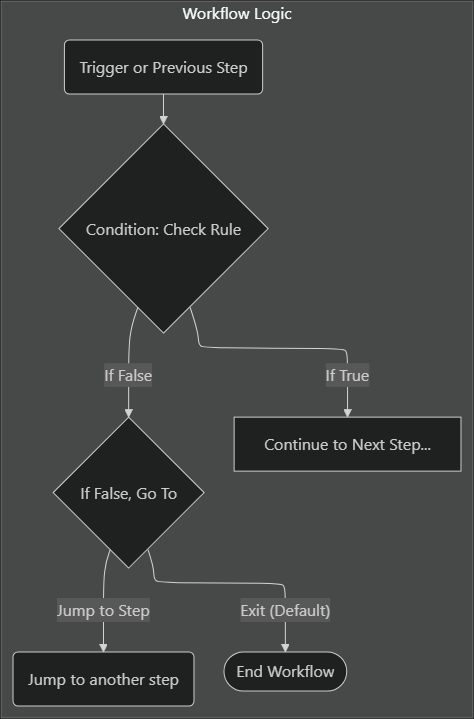

graph TD
    subgraph "Workflow Logic"
        A(Trigger or Previous Step) --> B{Condition: Check Rule};
        B -- "If True" --> C[Continue to Next Step...];
        B -- "If False" --> D{"If False, Go To"};
        D -- "Jump to Step" --> E(Jump to another step);
        D -- "Exit (Default)" --> F([End Workflow]);
    end

Operators

You can use different operators to build your condition logic. Here are the most common ones.

For a list of more advanced operators, go to the Ops section of this link.

Comparison Operators

These operators compare a field to a specific value.

Operator

Syntax

Description

Equal to

{ "fieldName": "value" }

Checks if the field's value is exactly equal to the specified value.

Not equal to

{ "fieldName": { "$ne": "value" } }

Checks if the field's value is not equal to the specified value.

Greater than

{ "fieldName": { "$gt": value } }

Checks if the field's value is greater than the specified value.

Greater than or equal to

{ "fieldName": { "$gte": value } }

Checks if the field's value is greater than or equal to the specified value.

Less than

{ "fieldName": { "$lt": value } }

Checks if the field's value is less than the specified value.

Less than or equal to

{ "fieldName": { "$lte": value } }

Checks if the field's value is less than or equal to the specified value.

In list

{ "fieldName": { "$in": ["value1", "value2"] } }

Checks if the field's value matches at least one of the items in the list.

Not in list

{ "fieldName": { "$nin": ["value1", "value2"] } }

Checks if the field's value does not match any of the items in the list.

Logical Operators

These operators allow you to combine multiple expressions into a single rule.

Operator

Syntax

Description

And

{ "$and": [ {condition1}, {condition2} ] }

Is true only if all of the listed conditions are true.

Or

{ "$or": [ {condition1}, {condition2} ] }

Is true if at least one of the listed conditions is true.

Nor

{ "$nor": [ {condition1}, {condition2} ] }

Is true only if none of the listed conditions are true.

Not

{ "$not": {condition} }

Is true if the specified condition is not true.

Example Scenarios

Here are some examples of how you can use the Condition step in your workflows.

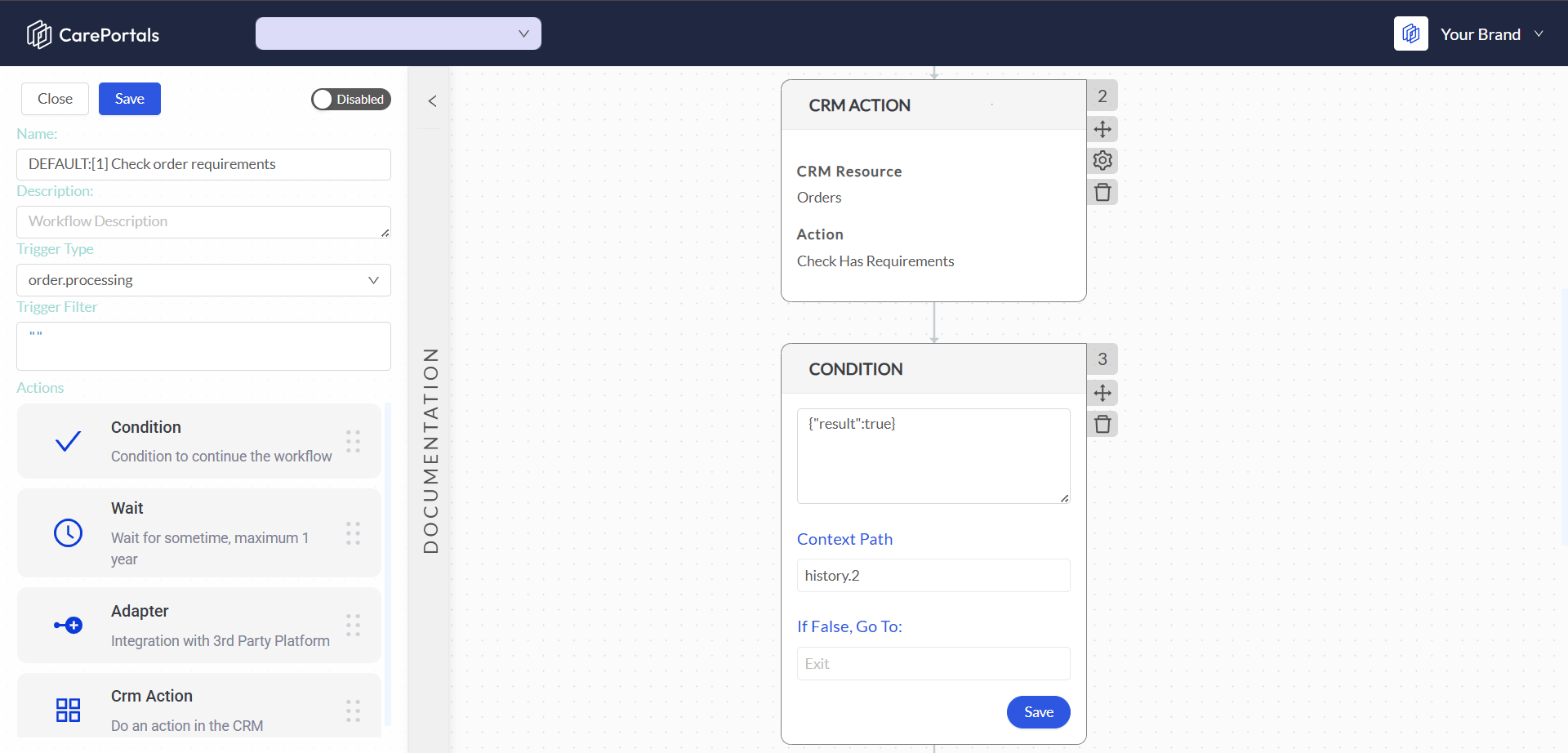

Check if a Requirement is Pending

Let's say a previous step (Step 2) in your workflow is a CRM Action that checks if a patient has any incomplete requirements. That action produces a true or false result. You can use a Condition step to check that result and send a reminder email if requirements are still pending.

  • Condition: {"result":true}

  • Context Path: history.2

  • If False, Go To:

    • If you leave this field blank, the workflow will automatically exit when the condition is false, it uses "Exit" as the default behavior.

    • Alternatively, you can choose any other step from the workflow to continue processing when the condition is false (e.g., 5).

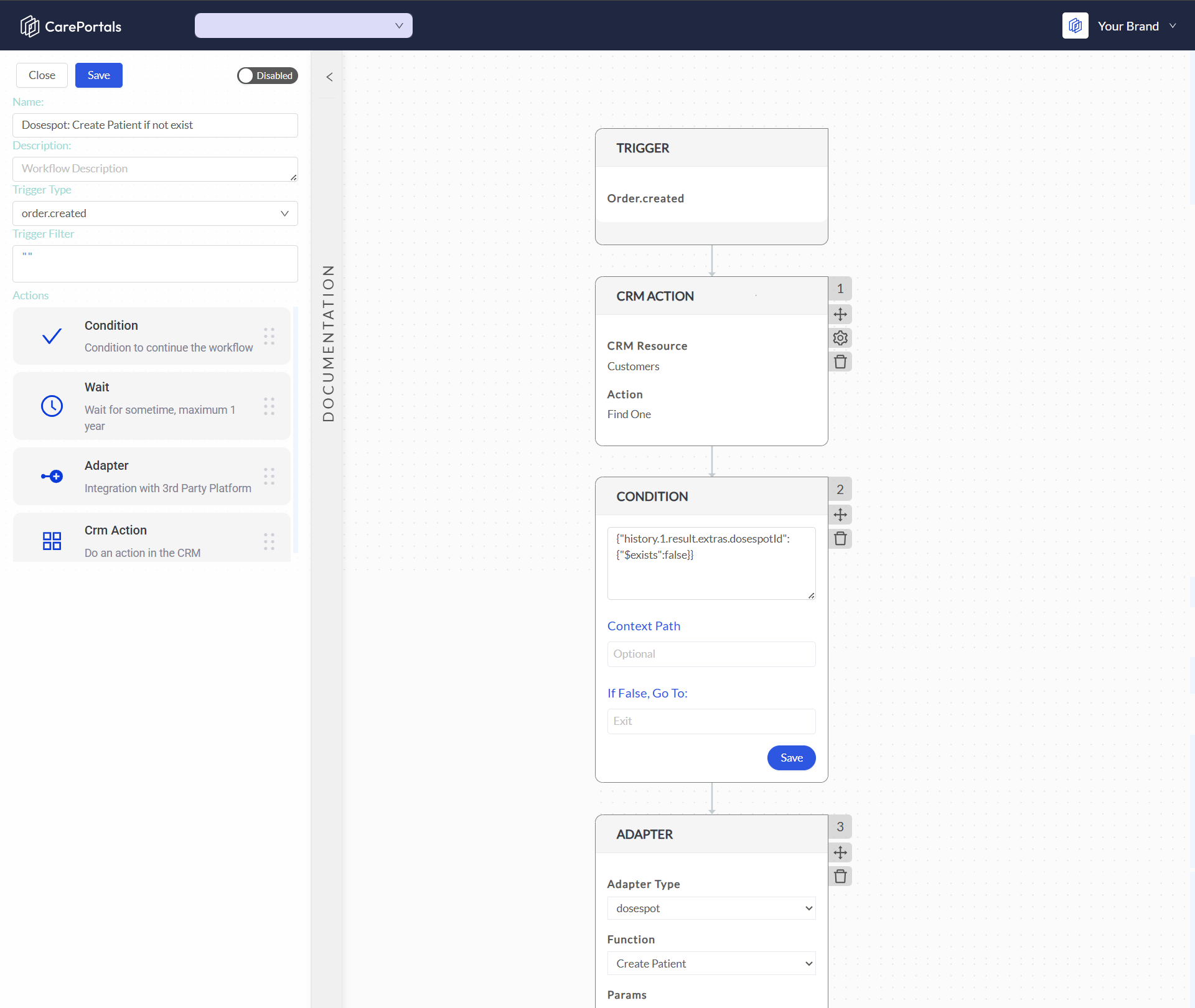

Create a DoseSpot Patient if One Does Not Exist

Let’s say you want to check if a patient record already exists in a third-party partner system before creating a new one. In this case, the workflow is checking for a patient ID from DoseSpot, a partner platform for ePrescribing that allows your medical team to send prescriptions electronically.

The workflow first uses a CRM Action, Find One, to search for the patient's record within CarePortals. The Condition step then inspects that record to see if it already contains an ID from DoseSpot. The condition looks inside the result of the first step for a specific field (dosespotId) within the extras data. If that field is missing, the workflow can proceed to create the patient record in DoseSpot.

  • Condition: {"history.1.result.extras.dosespotId":{"$exists":false}}

  • Context Path: Leave it blank for this example.

  • If False, Go To: Leave it blank to use the default option “Exit”. The workflow will stop in case of a false condition (which means that a DoseSpot ID already exists).

If this condition is true, the workflow continues to the next step, which is added as an Adapter. This Adapter is configured to connect to the DoseSpot platform and create a new patient record. To learn more about adapters, please see the How to Use Adapters article.

We’ve created the Send a Prescription Order to a Pharmacy via Lifefile Workflow article to show exactly how multiple workflow steps work together to automate a real-life process. Check it out to get a deeper understanding of how Triggers, Adapters, and Conditions interact in practice.
